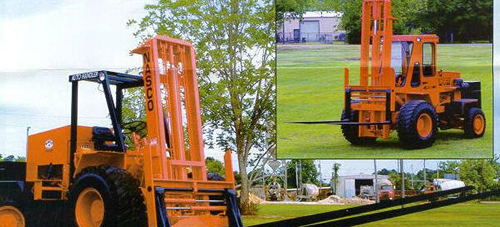

DN4W Model Specifications
return to DN4W Models
ENGINE:
Diesel Powered John Deere PE-4045D
Type: Four cycle
No. Cyl.: Four
Displ: 276 Cu. In.
Bore: 4.19 In.
Stroke: 5.0 In.
Ratio: 17.6 to 1
Gross H.P. @ 2500 RPM 80
Peak Torque @ 1200 RPM 215 Ft. Lb.
Fuel Direct Injection w/Cold Start Aid
TRANSMISSION:
Four Speed Synchromeshed Power Shuttle with Torque
Converter,
Electro-Hyd. Direction Shifter
DRIVE AXLE:
Heavy Duty with Planetary Reduction
DRIVEN STEER AXLE:
Steering Angle of 48". Compatible Differential Ratio with Main Drive
Axle Insures Optimum Ground Traction
STEERING:
Hydro-Static Power Supplied by 8 G.P.M. Gear Pump.
Maintaining Steering Load Lock to Lock.
BRAKES:
Hydraulically Operated By Foot Pedal. Oil Immersed Multiplate
Disc
Mounted in Differential Housing. Manually Operated
Lever Lock Parking Brake.
ELECTRICAL SYSTEM:
12 Volt with 55 Ampere Hour Alternator, 650 Cold Cranking
Ampere Battery.
HYDRAULIC SYSTEM:
Gear Pump Delivers 20 G.P.M. @ Rated
Engine Speed. Hyd. Pressure
Set @ 2500 P.S.I. with
Lever Operated Hyd. Control Value |
FUEL TANK:
15 Gallons
MODELS DN4W-10, DN4W-12, DN4W-14,
DN4W-16
Drive 50x20-20 (24-32 PLY)
Steer 34.5 x 9.75-18 (22 PLY
MAST:
Mill Rolled Shaped Beam Contsruction, with Permanently
Sealed 5" Diameter
Ball Bearings.
CARRIAGE:
60 Inch Width T1 Steel Cross Members, 5" Diameter
Solid Steel Rollers
with 4" Diameter Side Thrust Rollers.
FORKS:
4 Foot Long with 2" x 5" Cross-section, Pallet Type Forks Mounted with
Eyes onto Round Cold Steel Fork Shaft.
